6700 Series

Send Inquiry

Description
Technical diameters

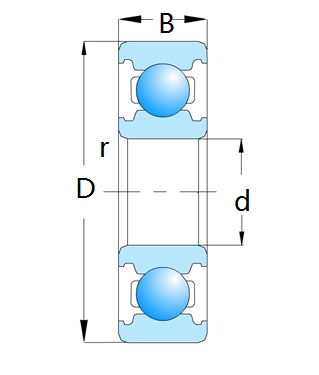

select	Inquiry	Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
select	Inquiry	Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
		6700	10	15	3	0.1	1.01	0.555	3600	4200	0.0015
		6701	12	18	4	0.2	0.93	0.53	8300	9500	0.002
		6702	15	21	4	0.2	0.94	0.585	6600	7600	0.0025
		6703	17	23	4	0.2	1	0.66	5000	6700	0.0025
		6704	20	27	4	0.2	1.04	0.73	5000	5700	0.0045
		6705	25	32	4	0.2	1.1	0.84	4000	4600	0.005
		6706	30	37	4	0.2	1.14	0.95	3300	3800	0.006

Deep groove ball bearings mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and colorful combination of structure; they are suitable for tractor, motors, automobiles, motorcycles, and other common machinery, as a widely used type of bearings in machinery industry.

Deep groove ball bearings are a common rolling bearing, which is characterized by the fact that both the inner and outer rings are spherical, and the contact point between the ball and the track is point contact, so it has high rotation accuracy and axial load carrying capacity. The following are the main features and descriptions of deep groove ball bearings:

Simple structure: Deep groove ball bearings are composed of inner and outer rings, steel balls, cages and sealing rings (optional). They have a simple structure and are easy to install.

Wide scope of application: Suitable for applications under various speeds and load conditions, including high-speed rotation and high-precision requirements.

Strong load-bearing capacity: Since the contact point between the ball and the track is point contact, it has high load-bearing capacity in both the axial and radial directions.

Low friction and high efficiency: Rolling bearings have a lower friction coefficient than sliding bearings, so they can reduce energy loss and improve mechanical efficiency.

Resistant to high-speed operation: suitable for high-speed rotation situations, able to operate stably and provide reliable support.

Sealing performance: An optional sealing ring can provide good sealing performance, prevent dust, water and other external substances from entering the inside of the bearing, and extend the service life of the bearing.

Easy to maintain: Conventional models of deep groove ball bearings have a long service life and are relatively simple to maintain. Generally, they only need to be lubricated regularly.

Bearing Detail
Bearing Type	Deep groove ball bearing
Seals Type:	Open, ZZ, 2RS
Material	Chrome steel GCr15
Precision	P0,P2,P5,P6,P4
Clearance	C0,C2,C3,C4,C5
Cage type	Brass, steel, nylon, etc.
Ball Bearings Feature	Long-life with high quality
	Low-noise with strict controlling the quality of JITO bearing
	High-load by the advanced high-technical design
	Competitive price, which has the most valuable
	OEM service offered, to meet the customers requirements
Application	mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry
Bearing Package	Pallet,wooden case,commercial packaging or as customers' requirement

Packaging & Delivery:

Packaging Details: Standard exporting packing or according to the customer's requirements

Package Type:	A. Plastic tubes Pack + Carton + Wooden Pallet
	B. Roll Pack + Carton + Wooden Pallet
	C. Individual Box +Plastic bag+ Carton + Wooden Pallet

Lead Time :
